INTERNAL REVIEW DRAFT — not for publication. Screenshots are frames lifted from the two SiteView build recordings and two product-owner snips; most need re-shooting at full size before release. Blocks marked IMAGE NEEDED / BLOCKED / DEFERRED are captures that do not exist yet, and blocks marked FOR REVIEW are open questions. Every one of those blocks must be resolved and removed before this article leaves the Temporary section.
BETA
Introduction
Compass is in beta. It is available to use and still being developed, so what it can answer will grow between releases.
Compass answers questions about your project in plain language. You type what you want to know, and it comes back with a short answer and the captures, notes, and documents it drew on.
It replaces the keyword search in CupixWorks 4.0. There is no separate search box to fall back on.
Note: Compass fully replaces the legacy keyword search at general availability. Any article, bookmark, or habit built around the old search needs revisiting.
Where to Open It
However you open Compass, you get the same right-side panel. What differs is the scope chip at the top, which tells you what is being searched.
- The CupixWorks dashboard — a full-width search bar on every dashboard view. Scope defaults to every project you can see.
- Inside SiteView, SiteInsights, and AssetAtlas — the Compass icon at the top right of the Topbar. Scope defaults to the project you are in.
- A keyboard shortcut — ⌘E on a Mac, Ctrl+E on Windows — anywhere.
BCN-02

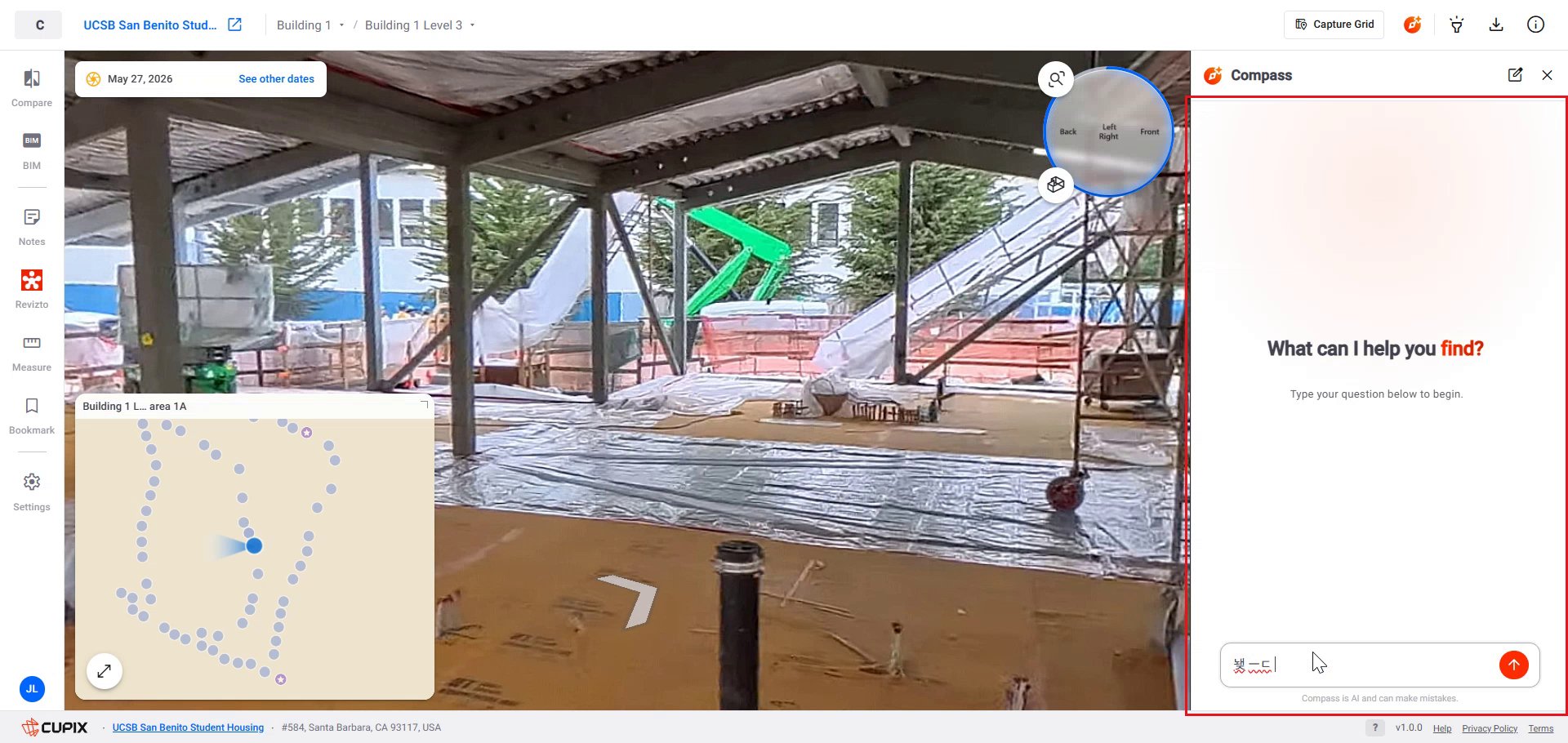

The panel header reads Compass. The question box sits at the bottom, with a compose icon and a close button.
FOR REVIEW — Settled 2026-09-15: the scope document is right and the three surfaces above are the shipping set. Mobile is out of scope for 5.0; the launch plan's “six places including mobile” is the side being corrected.
FOR REVIEW — Settled 2026-09-15: the shortcut is Command-E / Ctrl+E, per the SiteView specification. Cmd/Ctrl+K opens the keyboard-shortcuts panel and is not Compass. No hint appears on screen, so the keys are named here.
Asking a Question
Type the question the way you would say it. You do not pick a mode, name a data source, or learn a syntax.
What comes back is a short written answer followed by the evidence, grouped by where it came from. A Searching... state appears while it works.
BCN-01

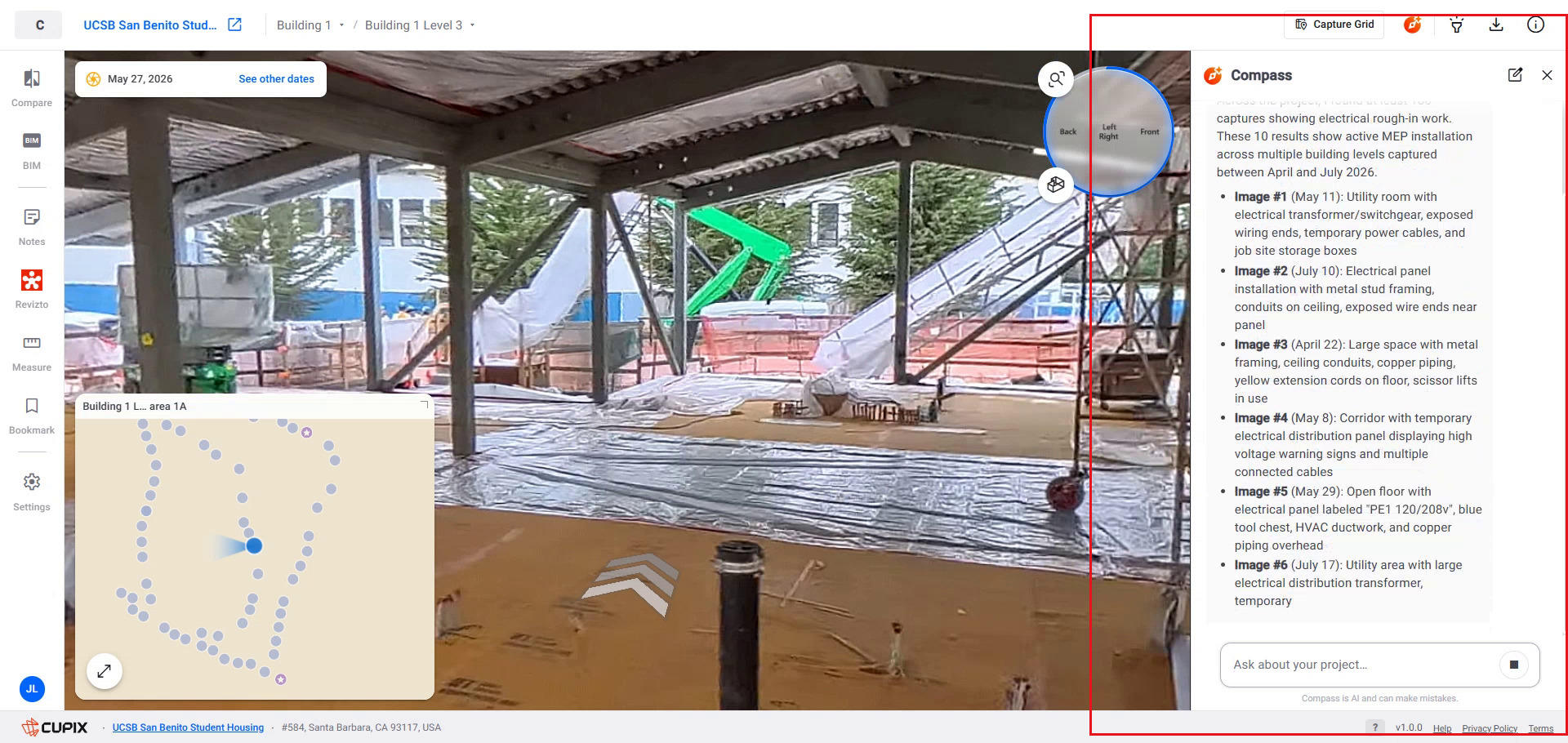

Asking "show me photos of electrical rough in" returns a set of dated findings, each naming what its image shows — the level, the date, and what is visible in it.
BCN-03
Questions that work, by the job you are doing:
| If you are... | Ask something like |
|---|---|
| Running a portfolio | "Which sites slipped against schedule last week?" |
| Running a project | "What's the status of the rebar on Level 4 of the east tower?" |
| Walking the site | "When did we last capture the east stairwell on Level 3?" |
| Capturing | "Which 360 captures from April covered the east stairwell, and who operated them?" |
| Coordinating BIM | "Which BIM file is referenced for the Level 5 mechanical model?" |
Follow-ups keep their context. Ask "only the data centre builds" or "and the previous one" and Compass carries the thread rather than starting over.
Reading the Citations

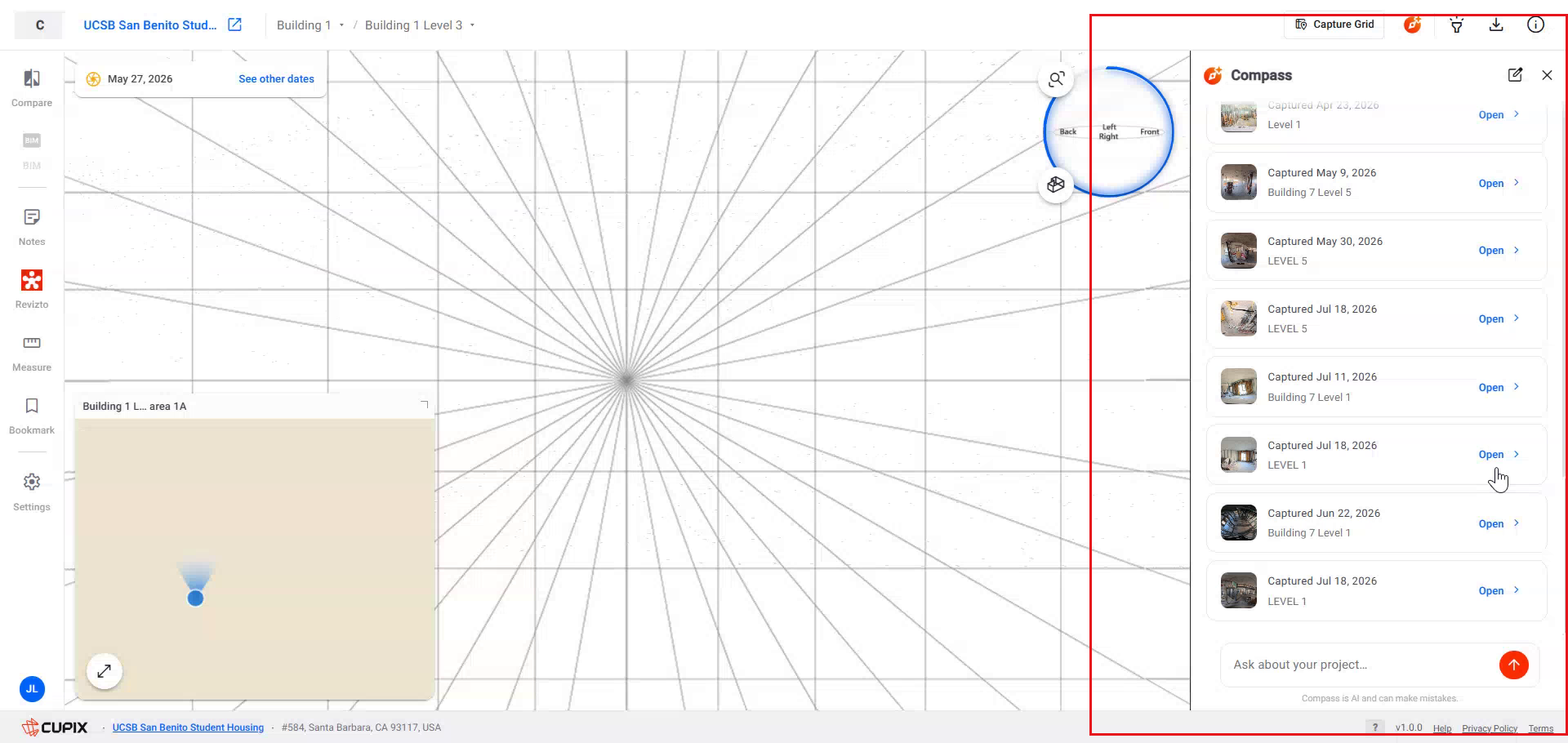

Under the answer is a list of citation cards. Each card carries a thumbnail, the capture date, the level, and an Open link.
- Click Open on a card and that capture loads in the viewer behind the panel.
- The panel stays open, so you can work down the list without losing the answer.
BCN-05
Note: Compass cites what it used. If an answer has no cards, it is a narrative answer rather than one drawn from specific captures — read it as a summary, not as evidence.
What It Can Search
Compass searches across the project's data rather than one type of it: captures and their Capture Intelligence outputs, SpatialNotes, and the documents attached to the project.
Note: For what Capture Intelligence produces, refer to the Capture Intelligence Overview article.
Scoping a Question
The scope chip at the top of the panel is clickable. You can widen a question from this project to all projects mid-conversation without retyping it.
IMAGE NEEDED · BCN-06
Shows: the scope chip row, with the scope widened from one project to all projects
Why it is not here: Never used on camera. Shootable today.
Comparing Dates
IMAGE NEEDED · BCN-04
Shows: a delta answer — what was added, resolved, and unchanged between two capture dates
Why it is not here: Needs a project with findings on two capture dates. Not demonstrated in either recording.
FOR REVIEW — Delta answers are described in the scope document but have not been seen. This section is a heading and a capture request rather than body copy, deliberately.
Coordinate Search
IMAGE NEEDED · BCN-07
Shows: a coordinate search returning results with distances
Why it is not here: Depends on the project having coordinate frames configured. Not demonstrated.
Giving Feedback on an Answer
IMAGE NEEDED · BCN-08
Shows: the thumbs up and thumbs down controls on an answer
Why it is not here: Present in the scope document, not seen on camera. Shootable today.
FOR REVIEW — Answered 2026-09-18: all three behaviours are committed for 5.0. Compass answers, cites and navigates, and the sections above are documentation rather than capture requests. Compass is at L1 pilot maturity, so the article carries a Beta mark — added at the top of this article in the same pass. This was the article's blocking question; whether the internal-review banner now comes off is Jin's call, not an answer's.
