What origin coordinates are for
A capture is a cloud of measurements with no opinion about where on earth it sits. Project origin coordinates give it one — a real-world position and orientation, so the model lines up with survey data, with a site plan, and with anything else georeferenced.
The model has not changed in 5.0. If you set these up in 4.0, the same values mean the same things. What moved is where the controls live.
Setting them when the project is created

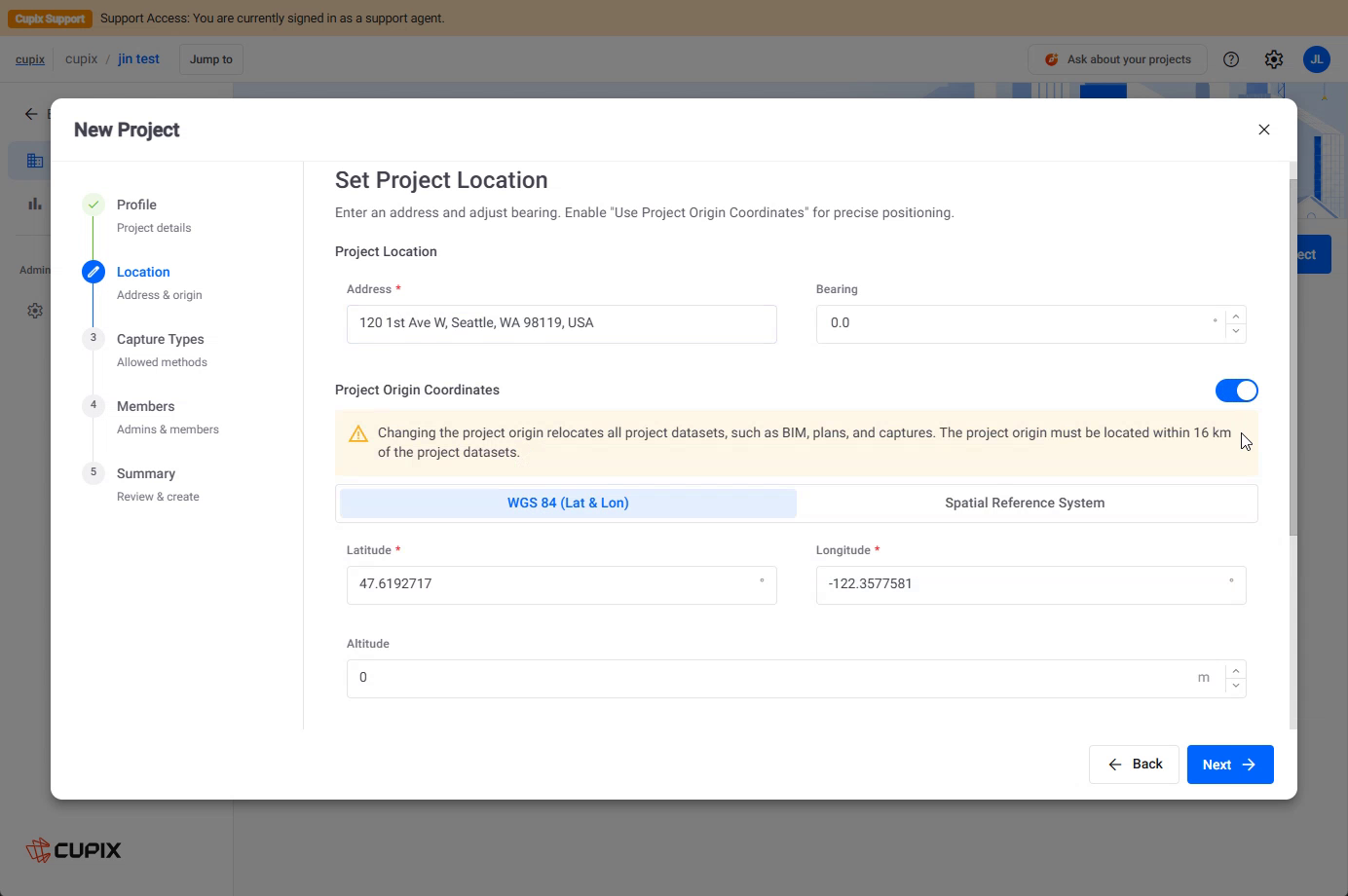

In the New Project wizard, at the Location step. Turn on Use Project Origin Coordinates and the rest of the step appears.
| Field | What it is |
|---|---|
| Coordinate system | WGS 84 (Lat & Lon) or SRS. The choice decides which pair of fields you fill in below |
| EPSG | The spatial reference, picked from a list — for the SRS route |
| Latitude / Longitude | The origin point, if you chose WGS 84 |
| X / Y | The origin point, if you chose SRS |
| Bearing | Which way the model is rotated relative to true north |
| Altitude | The height of the origin |
Changing them afterwards

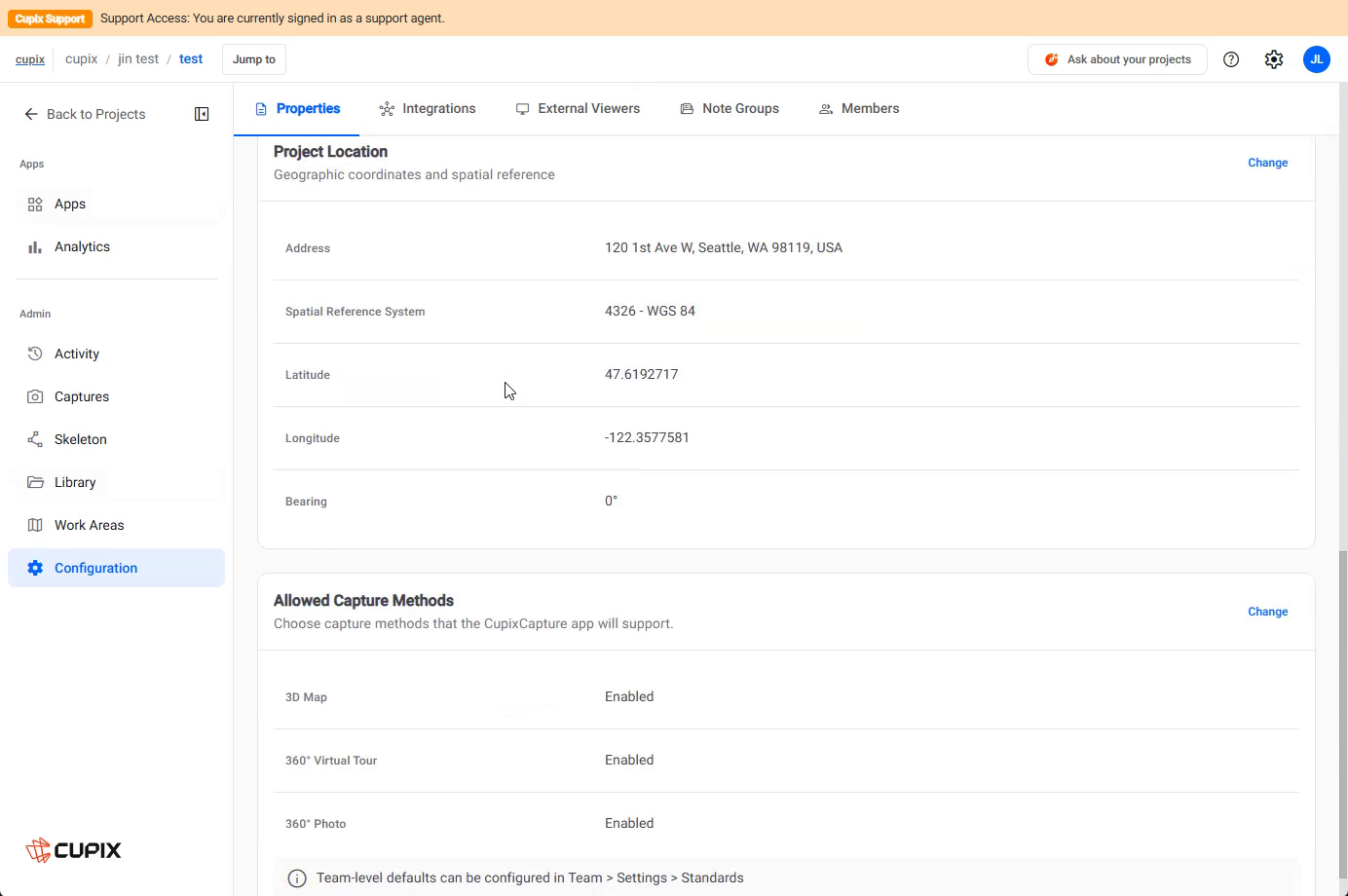

Configuration › Properties › Project Location. Every value above can be edited there after the project exists.
The one thing to decide before you create the project
The toggle is not offered again after creation. Once a project has origin coordinates you can change them — a different EPSG, a corrected bearing, a new origin point — but you cannot switch them off.
So the decision to georeference a project is made at creation and is one-way. Turning it on later is not on this page; turning it off later is not anywhere.
