Introduction
360° VideoDrive is a capture mode that uses a 360-degree camera mounted on a vehicle to efficiently capture large-scale sites at 12-20 mph (20-30km/h), making it ideal for areas too vast to cover on foot.
Watch this video for a quick introduction:
The key benefits of using 360° VideoDrive mode are:
- Quick turnaround time by utilizing GPS for processing.
- Capture 360° as-builts of sites too vast for walks and, too restricted for drones, such as:
- Expansive & vast construction sites.
- Miles of linear infrastructure.
- Utility lines weaving through the wilderness.
- Extensive rail networks.
Note: This feature is being launched as an "Open BETA," allowing everyone to test it.
IMPORTANT: You must update CupixCapture to the latest version in the App Store.
Specifications
Here are the specifications:
- Recommended speed: 12-20 mph (20-30 km/h).
- Maximum recording time: 20 minutes. (Record as many times as your SD card allows.)
- Output: 360° Virtual Tour only. (No 3D dollhouse generation.)
Hardware Requirements
Here are the hardware requirements:
- Camera: See the Supported 360° Cameras article for models compatible with 360° VideoDrive mode.
- Vehicle mount: We recommend using a stable vehicle mount that securely attaches to the vehicle's front hood, roof, or rear side. Buy the Insta360 Dual/Triple Suction Cup Car Mount from this LINK.
- 512 GB SD card: 360° VideoDrive captures require substantial storage space (approximately 10-15GB for a 20-minute capture), so a high-capacity SD card is essential.
- Power supply & extra-long USB-C cables: These are needed to power the camera during extended capture sessions.
Project Setup
Here is how to set up your project to allow 360° VideoDrive mode to work properly:
- Go to the Map View page at the [your team subdomain].cupix.works site.
- Click on the project, then click "Open Project Admin Center".
- Click on "Project Setup".
- Under "Project Location", click the Configure button.
- Toggle "Use Project Origin Coordinates" on.
- Click the Save button.
Important Notes:
- Project Admin access is required to access Project Admin Center.
- If you already have Use Project Origin Coordinates enabled, you can ignore the above steps.
Mount Camera on Vehicle
Here is how to mount the camera to the vehicle using a suction cup car mount:
- Securely attach the camera to the vehicle using an appropriate mount.
- Ensure the mount is stable and properly tightened to prevent detachment during movement.
- Position the camera at a height that optimizes capturing the surroundings while minimizing the focus on your vehicle.
- Keep the camera within the vehicle’s boundaries to avoid accidental impacts or damage.

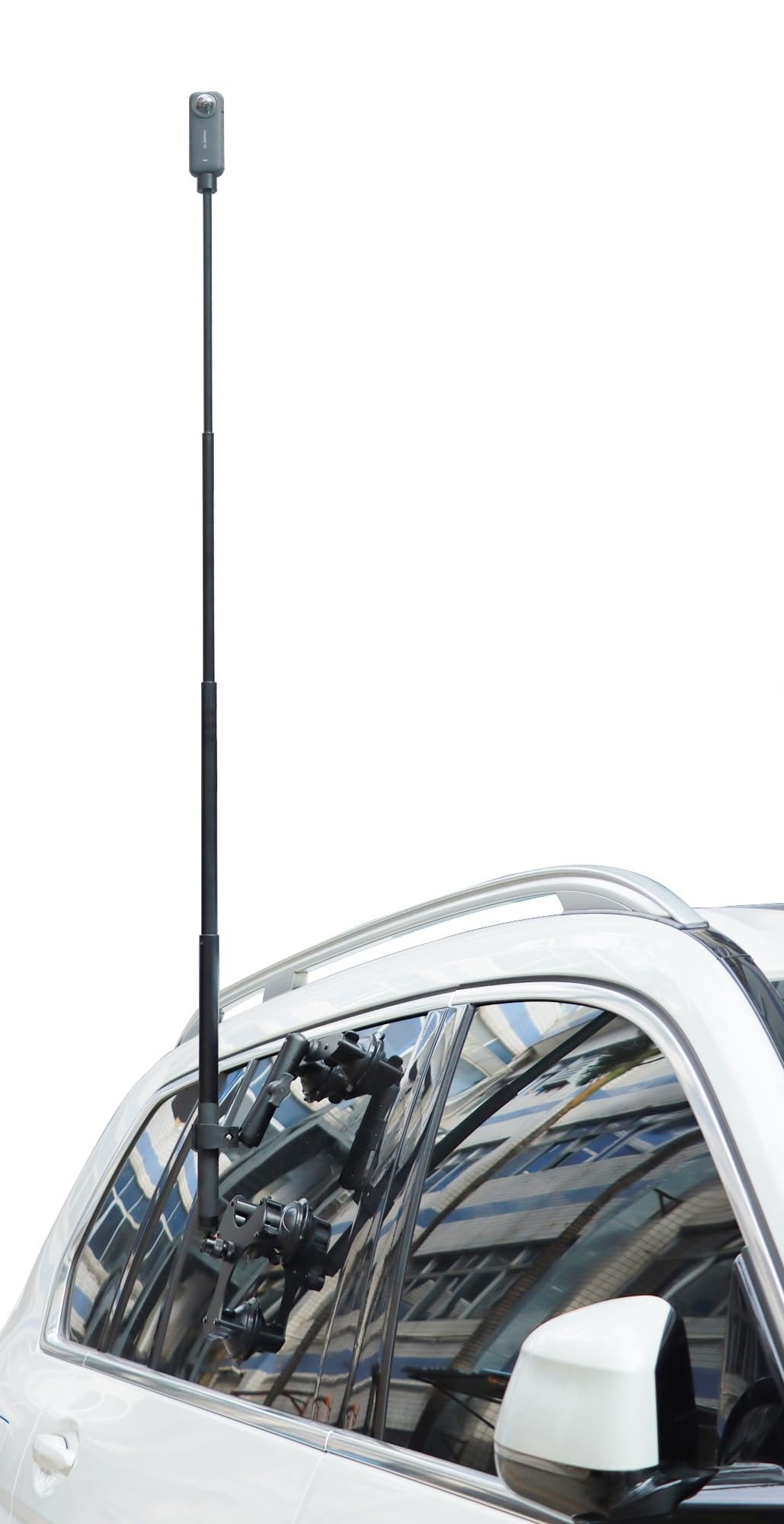

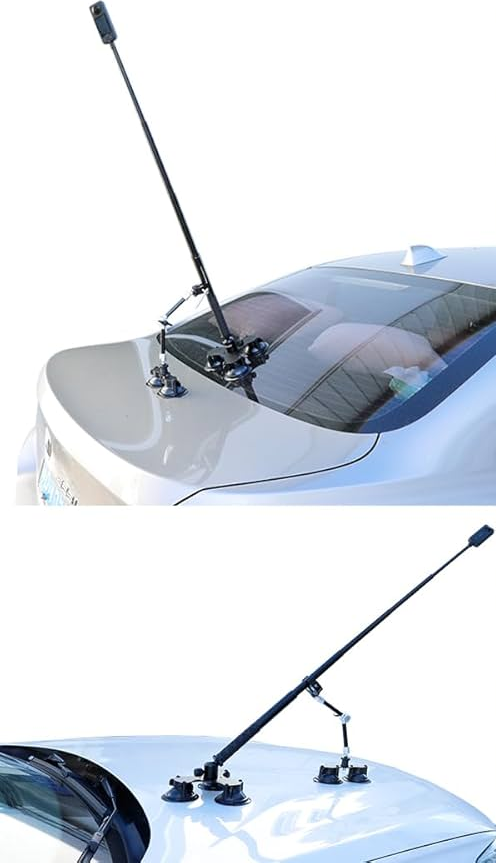

Example mounting placements:
CupixCapture Instructions
IMPORTANT: You must update CupixCapture to the latest version in the App Store.
Here is how to enable and start capturing using 360° VideoDrive mode:
- Open the CupixCapture app on your mobile device.
- Log in, select your project, and load the relevant settings (if not done already).
- Tap on the Settings (gear) icon.

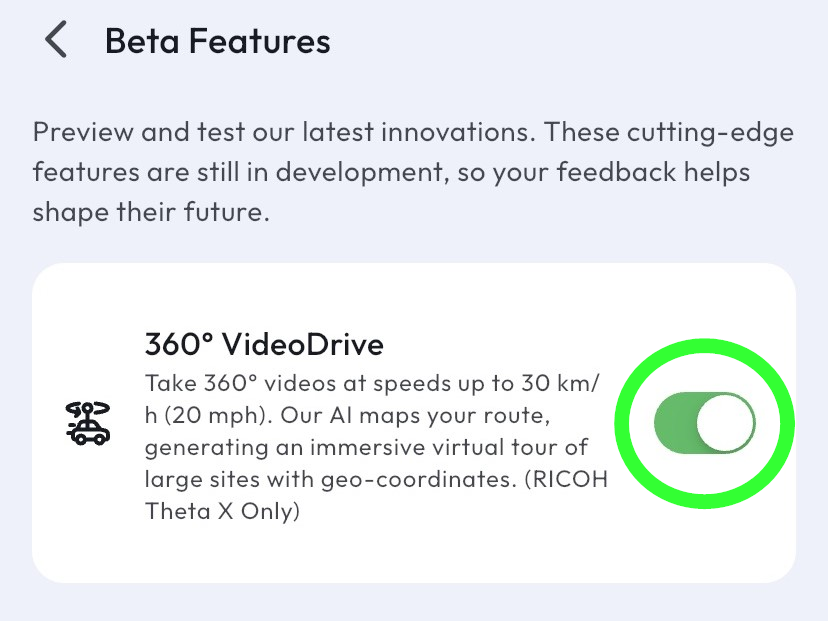

- Tap on "Beta Features".
- Tap on the toggle to enable 360° VideoDrive.
- Tap the back arrow (<) in the upper left corner to return to Settings.
- Tap the X in the upper right corner to return to the main screen.
- Turn the camera on (if not already) and tap on the Connect 360° Camera button
.
- Follow the camera connection process until the capture modes appear. ('3D Map' is the default.)
- Swipe the capture modes from right to left until you see '360° VideoDrive' in grey text, then tap on it.

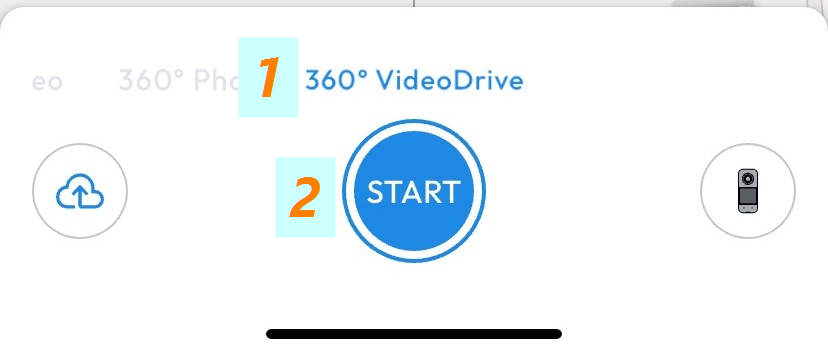

- You will now see the '360° VideoDrive' text in blue (1). Tap on the Start button to begin recording (2).
- Drive around the site for up to 20 minutes, stop the vehicle, and end the recording. Repeat as necessary.
Upload Capture
- Upload captured files using either the CupixCapture app or CupixConnect desktop app.
-
Note: Keep the app open during mobile upload
-
Note: Keep the app open during mobile upload
Important: A 20-minute 360° VideoDrive typically requires 10-15GB of storage, so please plan accordingly and use Connect when uploading.
SiteView Results

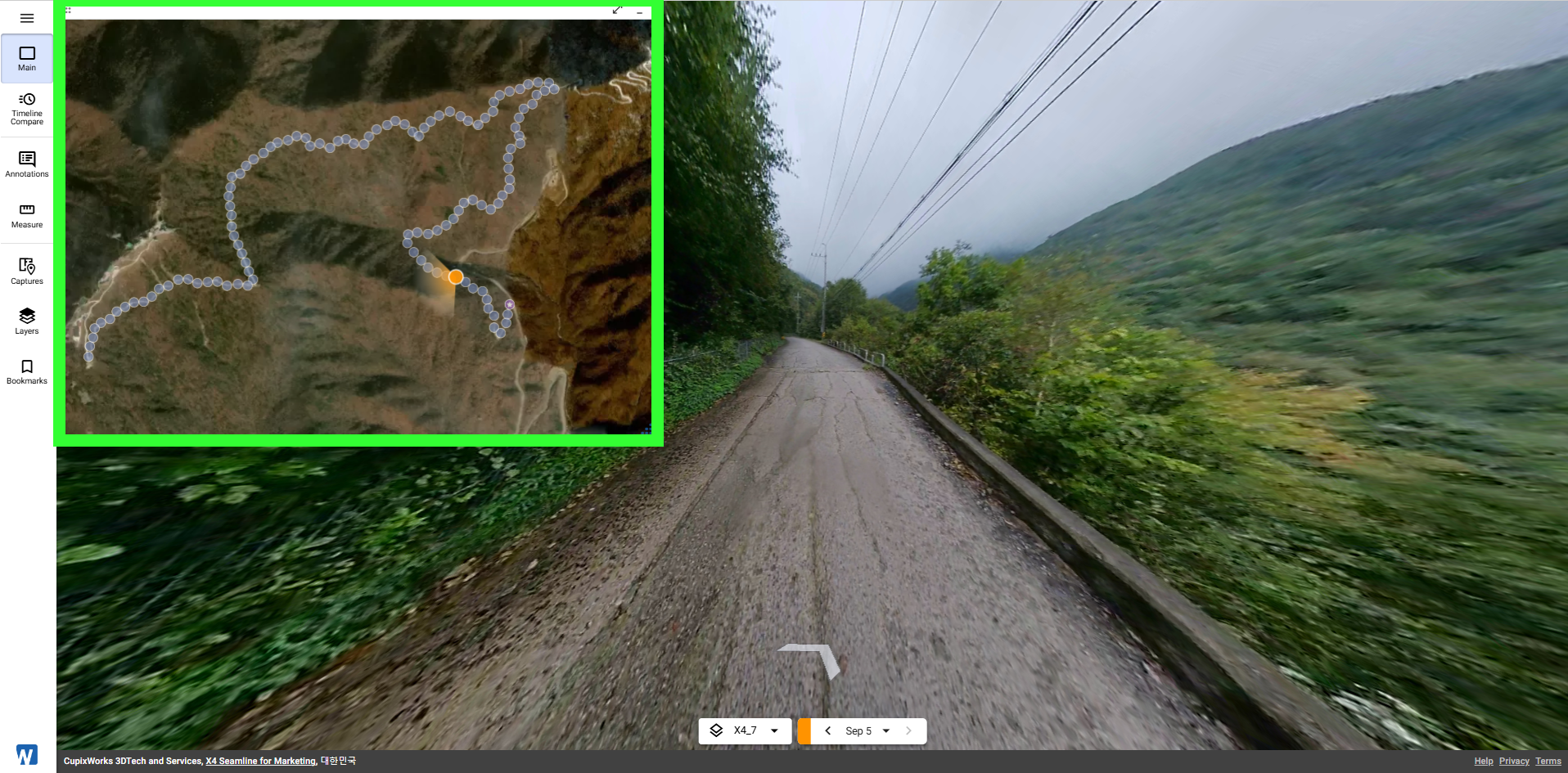

Captured data is automatically aligned using GPS data in the Plan Viewer. Example screenshot:
Note: 360° VideoDrive does not generate a 3D dollhouse; only the 360° Virtual Tour is available for viewing.
